Organic Fertilizer Dryer Equipment Fertilizer Drying Machine Cooling Drum

Basic Info.

Type	Fertilizer Feeder Machine
Voltage	380V
Certification	CE, ISO
Installation	Engineers Guiding Service Available
Operation	Easy
Maintenance	Easy
Color	Any Color
Transport Package	Factory Packing
Trademark	JINYUELONG
Origin	China
HS Code	8479899990
Production Capacity	1000 Set Per Year

Product Description

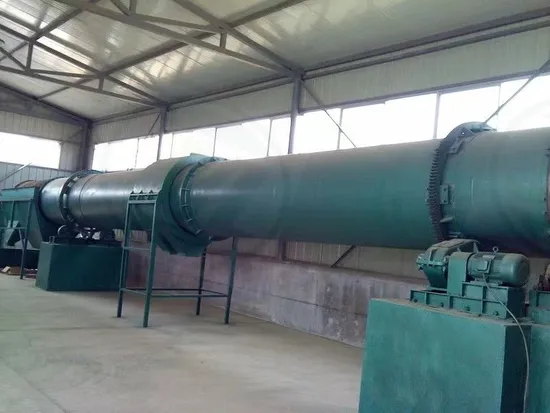

Drum Type Drying Machine
The dryer is the main equipment in the production of organic fertilizer and compound fertilizer,that is used for drying sludge, animal manure, powdered and granular organic fertilizers, and compound fertilizers,Transferring heating the material directly by rotating the edge of the cylinder and flange connection,also there is one kind of special fishing device inside of it that can dry as the forward or counter-flow direction as the different material. which can be dried in a forward or reverse flow manner according to different materials. This allows the materials to form a material curtain inside the cylinder and fully contact the drying medium, fully utilizing heat energy to realize the best drying effect

CYLINDER COOLING MACHINEthis machine looks like similar with the Cylinder Drying machine in a outside . The material is added from the inlet end, and the cold air enters from the outlet section,The twomatters meet against the current and drop to a certain temperature then the material discharges from the outlet end.Due to the design of the machine with cold air counterflowing, pollution is reduced and the working environment is improved

WORKSHOP CORNER

MODEL	CLYLINDER SIZE	POWER KW	CAPACITY
HG12 - 12	1200 × 1 2 0 0 0	7.5	1 - 3 t/h
HG16 - 16	1600 × 16 0 0 0	15	3 - 4 t/h
HG18 - 18	1800 × 1 8 0 0 0	22	4 - 6 t/h
HG20 - 20	2000 × 2 0 0 0 0	30	6 - 8 t/h
HG22 - 22	2200 × 2 2 0 0 0	37	8 - 10 t/h
HG24 - 24	2400 × 240 0 0	45	10 - 12 t/h

MODEL	CYLINDER SIZE	POWER KW	CAPACITY
LQ10 - 10	1000 × 1 00 0 0	5 . 5	1 - 3 t/h
LQ12 - 12	1200 × 1 2 0 0 0	7 . 5	3 - 5 t/h
LQ16 - 16	1600 × 1 6 0 0 0	1 5	5 - 8 t/h
LQ18 - 18	1800 × 1 8 0 0 0	22	8 - 10 t/h
LQ20 - 20	2000 × 2 2 0 0 0	3 0	10-4 t/h
LQ22 - 22	2200 × 2 2 0 0 0	37	14 - 16 t/h
LQ24 - 24	2400 × 2 2 0 0 0	45	16 - 20 t/h
